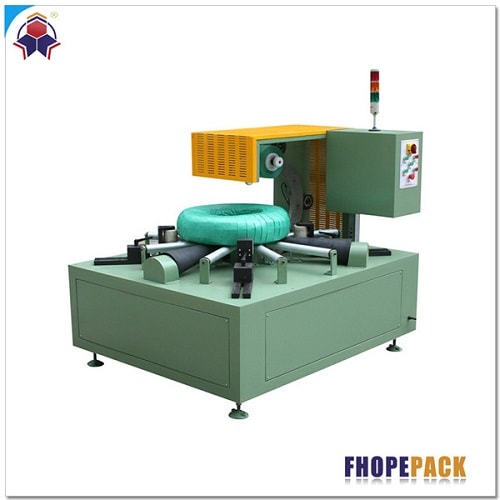

Hose Coil wrapper FPH-200

Project Information

The FPH series hose coil wrapper is a specialized vertical wrapping machine designed to simplify the packaging process for hose coils. By offering efficiency, ease of operation, and the ability to save on labor and materials, this machine addresses key challenges in the hose coil packaging process.

Key Features

Vertical Orientation:

Designed for easy loading, wrapping, and maintenance in a vertical configuration.

Specialized for Hose Coils:

Tailored to handle small and light hose coils efficiently, providing optimal results.

Material Versatility:

Compatible with various hose materials, such as rubber, plastic, and metal.

Automate small-coil wrapping with Wuxi BuHui’s FPH-200 Hose Coil Wrapper. Vertical spiral design wraps each coil in 15–35 seconds, cutting labor, film waste, and product damage.

The Challenge

High Labor Needs: Manual wrapping demands multiple operators and risks ergonomic strain.
Uneven Sealing: Inconsistent overlap and tension allow contaminants in and cause damage.
Film Waste: Imprecise cuts and overlap drive up material costs.
Low Throughput: Slow manual cycles fail to meet production targets.
Frequent Changeovers: IDs 300–600 mm, ODs 400–900 mm, widths 50–200 mm, weights 5–50 kg require rapid adjustment.
Operator Simplicity: Nontechnical staff need intuitive controls, clear alarms, and easy maintenance.
Equipment Safety: Soft start/stop, guiding rollers, and PU surfaces protect machine and coils.
Media Flexibility: Must handle LLDPE, PE, stretch film, PVC with auto cut-off.

Features & Benefits

Feature	Benefit & ROI
Vertical Spiral Design	Minimizes footprint and ensures uniform 360° coverage.
15–35 s Cycle Time	Boosts throughput and eliminates end-of-line delays.
Inverter-Driven Speeds	Adjust ring (20–90 RPM) and roller (2–4 m/min) for precise wraps.
Adjustable Overlap (20–90 %)	Balances protection and material use to cut waste.
Sensor Reset Positioning	Ensures repeatable start/stop accuracy, reducing rework.
Soft Start/Stop & Guides	Protects machine and coil surfaces, extending equipment life.
Semi-Auto/Auto Modes & Alarms	Simplifies operation; immediate alerts minimize downtime.
PU-Covered Surfaces	Prevents abrasion and preserves coil finish.
Media Flexibility & Auto Cut-Off	Supports multiple films; clean cuts reduce waste.
Quick Changeover	Handles ID 300–600 mm, OD 400–900 mm, width 50–200 mm, weight 5–50 kg with minimal setup.
Robust, Low-Maintenance Build	Durable components and easy access cut service time.

Technical Specifications

Parameter	Specification
Model	FPH-200 Hose Coil Wrapper
Coil ID	300–600 mm
Coil OD	400–900 mm
Width	50–200 mm
Weight	5–50 kg
Wrap Time	15–35 s/coil
Ring Speed	20–90 RPM (inverter)
Roller Speed	2–4 m/min (inverter)
Overlap	20–90 %
Power	AC 380 V/50 Hz (1.5 kW)
Control	Semi-auto/manual modes; sensor positioning; alarms
Safety	Soft start/stop; guiding rollers; PU surfaces
Materials	LLDPE, PE, stretch film, PVC
Maintenance	Easy-access sensors and inverters
Customization	Adaptable to coil specs and layout

Ideal Applications & Industries

Hose & Pipe Manufacturers: Fast, uniform wrapping of small/light coils.
Plastic & Piping OEMs: Protect coiled tubing in shipping and storage.
Contract Packaging Providers: Scale high-speed spiral services for varied sizes.
Warehousing & Logistics: Secure loads and reduce damage claims.
Maintenance Teams: Quick rewrapping with minimal training.
System Integrators: Plug-and-play into end-of-line packaging cells.

Why Wuxi BuHui?

Wuxi BuHui’s FPH-200 combines vertical spiral speed, inverter precision, and sensor alignment to cut labor and material costs. It delivers consistent, protective wraps in 15–35 seconds, fits any layout, and maximizes uptime—making it the smart choice for efficient coil packaging.

Request a Quote

Contact Wuxi BuHui with your coil specs to customize an FPH-200 solution that boosts throughput, minimizes waste, and ensures reliable protection.

The FPH-200 hose coil wrapper is a compact and efficient machine designed for secure wrapping of hose coils. It provides reliable protection against dust, moisture, and damage during handling or transport. With its user-friendly design and automated features, it enhances productivity and ensures consistent packaging quality for industrial applications.
