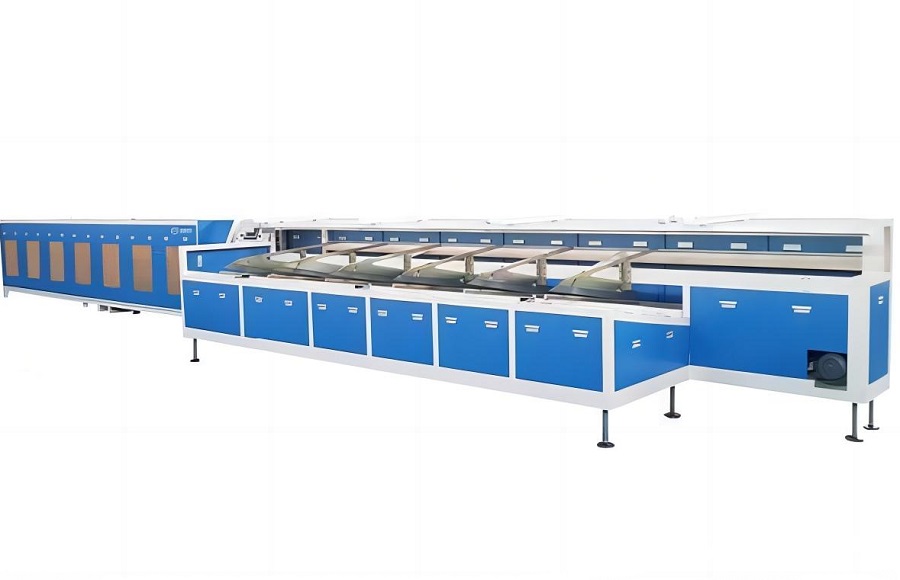

Bagging machine
Project Information
Bag packing machines for plastic pipes and pipe bundles are designed to automate the process of enclosing pipes or bundles in protective bags. These machines typically feature conveyor belts or material handling systems for feeding the pipes, along with packaging mechanisms for sealing. Some models also include label printers or code scanners for easy tracking and identification.
Key Features Summary
Automated feeding and packaging for increased efficiency
Suitable for single pipes or bundles
Optional label printing and scanning for tracking and management
Flexible design to accommodate various sizes, materials, and packaging needs
Customizable solutions to meet specific speed and capacity requirements
Automate pipe counting, bundling, and bagging with Wuxi BuHui’s Plastic Pipe Bag Packing Machine. Handles Ø20–65 mm pipes (3–6 m), forms Ø180–250 mm (10–50 kg) bundles, and applies stretch-film or PE/PP/HDPE bags at over 1 bundle/min.
The Challenge
- Labor-Intensive: Manual counting and bundling demand extra staff and risk miscounts.
- Unreliable Protection: Loose or uneven bagging exposes pipes to dust, moisture, or damage.
- Throughput Bottlenecks: Slow manual cycles can’t meet rising production volumes.
- Size Variability: Ø20–65 mm diameters and 3–6 m lengths require frequent changeovers.
- Integration Flexibility: Must fit inline after extrusion or operate offline without major reconfiguration.
- Material Efficiency: Precise use of film or bags is critical to avoid waste.
- Reliability & Maintenance: Equipment must run continuously with minimal downtime and easy servicing.
Features & Benefits
| Feature | Benefit & ROI |
|---|---|
| Automated Pipe Counting | Eliminates miscounts and rework by ensuring accurate quantities every cycle. |
| Automatic Bundle Formation | Creates uniform bundles—saves labor and ensures stable handling. |
| Integrated Bag Packing | Applies stretch-film or PE/PP/HDPE bags automatically—secures and protects bundles. |
| Wide Pipe Range | Accommodates Ø20–65 mm without retooling—boosts flexibility for varied lines. |
| Bundle Specs Ø180–250 mm, 10–50 kg | Handles typical bundle sizes reliably—maintains integrity during transfer. |
| High Speed (>1 bundle/min) | Meets production targets—eliminates end-of-line slowdowns. |
| Inline & Offline Feeding | Easily integrates with extrusion lines or as a standalone cell—fits any layout. |
| Adjustable Controls | Set count, bundle size, tension, and speed via panel—reduces setup time. |
| Consistent Tension & Sealing | Ensures uniform film or bag closure—protects bundles and cuts waste. |
| Robust Frame & Guides | Prevents jams and misalignment—supports long pipes securely. |
| Auto Discharge & Transfer | Hands-free bundle delivery to conveyors—reduces manual handling. |
| Flexible Bag Support | Accepts PE/PP/HDPE bags (Ø200–500 mm rolls)—auto-feed and cut-off for neat sealing. |
| Air Supply Integration | Operates on 5–7 bar—ensures reliable pneumatic gripping and alignment. |
| Standard Power Supply | Fits 380 V 3-phase—ensures stable plant operation. |
| Optional HMI Interface | Touchscreen control simplifies monitoring and parameter adjustment. |
| Safety & Alarms | Interlocks and fault alerts protect operators and minimize downtime. |
| Modular Design | Phased integration into extrusion or packaging lines—scalable upgrades. |
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Plastic Pipe Bag Packing Machine |
| Pipe Diameter | Φ20–Φ65 mm |
| Pipe Length | 3–6 m |
| Bundle OD | Φ180–Φ250 mm |
| Bundle Weight | 10–50 kg |
| Counting Mode | Programmable automatic |
| Speed | >1 bundle/min |
| Bag Width | ~280 mm |
| Bag Material | PE, PP, HDPE (30–80 µm) |
| Roll Size | Ø200–500 mm |
| Feeding Mode | Inline or offline |
| Air Supply | 5–7 bar |
| Power | 380 V, 3-phase, 60 Hz |
| Control | PLC; optional HMI |
| Safety | Interlocks, emergency stop, alarms |
| Frame & Guides | Robust fixtures for alignment |
| Discharge | Auto to conveyor/staging area |
| Maintenance | Easy-access components |
| Customization | Adaptable to pipe specs, bundle sizes, and layout |
Ideal Applications & Industries
- Plastic Pipe Producers: Automate counting, bundling, and bagging for PPR, PVC, PE lines.
- Contract Packaging: Reliable bag-packed bundles for multiple clients.
- Logistics & Warehousing: Uniform bundles for easy handling and reduced damage.
- System Integrators & OEMs: Seamless integration into extrusion or packaging lines.
- After-Sales Teams: Simple maintenance design ensures high uptime.
Why Wuxi BuHui?
Wuxi BuHui’s Plastic Pipe Bag Packing Machine delivers error-free counts, uniform bundles, and secure bag sealing at over 1 bundle/min. Its flexible feeding modes, robust construction, and optional HMI ensure reliable, high-efficiency packaging.
Request a Quote
Contact Wuxi BuHui with your pipe specifications and throughput goals. We’ll configure a tailored solution that maximizes efficiency, reduces waste, and guarantees protective packaging.
A bagging machine streamlines packaging by efficiently filling and sealing bags with precision. Suitable for a variety of products, including food, chemicals, and industrial materials, it ensures consistency and reduces waste. This versatile solution enhances operational efficiency, lowers costs, and meets the demands of high-volume production environments.
