Automatic winder FCL-S1000

Project Information

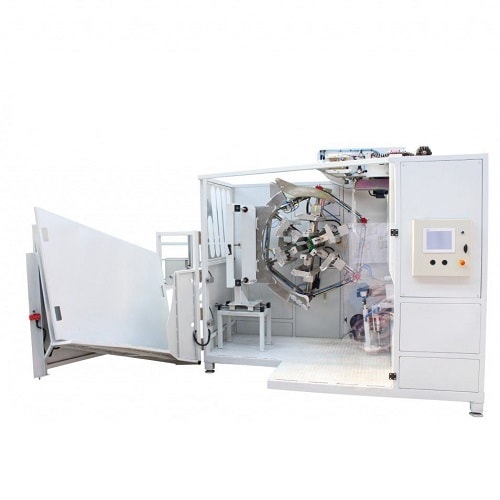

hose

This is an automatic reel and film wrapper for vertical winding and bundling, such as tube coils, hose rolls, etc. After coiling and bundling, the tube coils are well shaped. The machine saves labor and increases productivity, plays a key role in your production process and is very popular in the modern packaging industry.

Fhope automatic coiling and strapping machines are CE compliant and are designed with the latest technology and industrial design standards. We offer you packaging solutions for the pipeline industry.

Product specifications

The standard configuration is listed below. For other configurations, please contact our sales representative.

The winding and packaging machine should be installed on a flat, hard floor with a load of more than 1 ton / square meter.

Packaging process:

A. Pipe from the extruder/spool through the tensioner and counter

B. Automatically send the pipeline to the take-up station.

C. The pipe head is clamped and rotated for winding

D. Automatic layering and coil making.

E. Automatically cut the pipe when the pipe length reaches the set value.

F. Automatic film feeding and packaging.

G. Packaging completed and cut the movie

H. Introduce the wound coil.

Basic features of the tube winding machine

Connect to the extruder online.

Powerful drive for large and hard pipe winding.

Adjustable take-up arm based on ID and width

PLC and HMI control system for automatic operation.

Two working modes: automatic and manual.

Tension control for pipe feed for tight winding.

The parameters can be set in the PLC program.

Calculate the length of the pipe and automatically cut the pipe.

Automatic winding system.

Automatic alarm system when a fault occurs.

The position of the pipe is automatically detected by the sensor.

The speed can be adjusted by the frequency converter.

Pipe feeders are used with automatic displacers.

Winding the pipe coil in an orderly manner.

The pneumatic pusher discharges the tube coil.

Hydraulic cutting machine for cutting powerful pipes.

Technical data:

Pipe diameter Φ16, 20, 25, 32mm

Tube coil inner diameter 400-800mm

Tube coil outer diameter 600-1000mm

Tube coil width 150-250mm

Tube coil weight 3-20kg

Coil feed mode Keep coil type

Counter 30-100meters

Winding speed maximum. 100m/min

Strap position 3 belt

Packaging material LLDPE film:

Width: 300-500mm Thickness: 20-40micron

Power supply voltage AC 380V, 50HZ, 3-phase 5-wire

This is an automatic reel and film wrapper for vertical winding and bundling, such as tube coils, hose rolls, etc. After coiling and bundling, the tube coils are well shaped.
