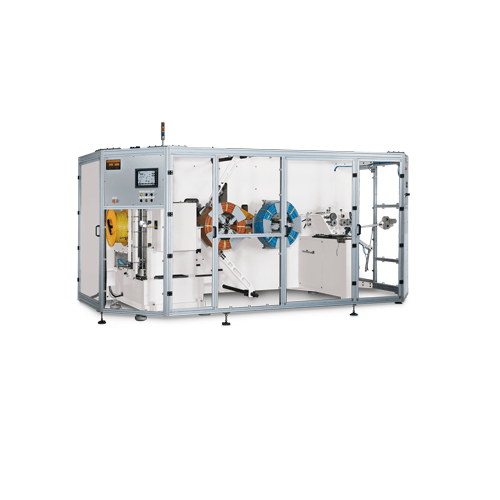

Automatic hose coiler FCL-V600

Project Information

hose

Description:

The automatic winding machine FCL-600 system is a vertical automatic winding machine. It is a complete line that can automate a series of complete steps from fixed length, then winding, cutting, bundling, winding, to finishing the line. It takes up very little space, but it does the task of auto-winding and packaging efficiently and quickly, meeting the high standards of packaging requirements.

Function:

Automatic hose/pipe winding for calculating tube length, coil making and cutting. Then keep the loop and move to the next station automatically. The diagram can be set in the PLC control program. The machine belt and connection terminals are automatically adjusted by means of safety welding. When the belt is inserted, the motor automatically turns off.

Feature:

1. PLC control program.

2. Setting parameters can be used to control the program.

3. The OD of the winding is adjustable.

4. The cutting length of the tube can be adjusted.

5. Two protective devices are used to secure and move the helix.

6. Automatic detection of error functions and alarms when a fault occurs.

7. Position the pipe through the sensor.

8. The compression device keeps the tube stable.

The automatic winding machine FCL-600 system is a vertical automatic winding machine. It is a complete line that can automate a series of complete steps from fixed length.
