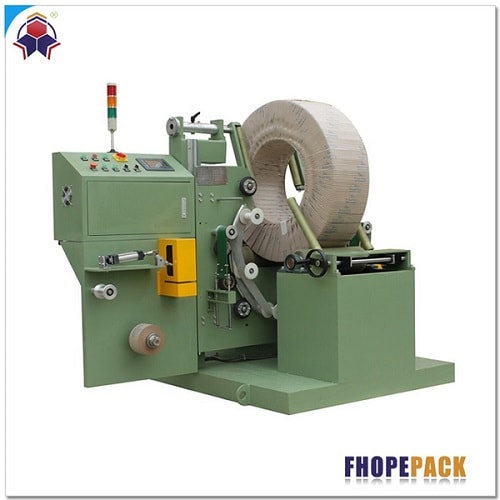

Steel coil wrapping machine FPS-400

Steel coil wrapping machine supplier-2024

Project Information

The FHOPE FPS-400 is a classical, top-open coil packing machine, ideal for handling heavy steel coils with exceptional convenience. Its design enables effortless loading and unloading via crane, combining functionality with versatility. Tailored to meet specific customer requirements, the machine ensures efficient, safe, and customizable operations for varying coil sizes and packing needs.

Key Features:

Top-Open Design: Simplifies hoisting heavy/large coils
Custom Specs: Fits any coil OD, ID, width & thickness
Material Versatility: Handles stretch film, crepe paper, woven belt, etc.
Adjustable Settings: Control wrap speed, roller speed & layer count

Get Free Quote Now

FPS-400 Steel Coil Packaging Machine

Automate your coil packaging to boost throughput, cut labor and material costs, and ensure safe, high-quality wraps for heavy steel coils of any size.

Features & Benefits

Adjustable Wrapping Tension – Delivers uniform, secure wraps on diverse coil diameters.
PLC & HMI Control – Speeds setup and slashes operator errors.
High-Speed Operation – Maximizes output and keeps your line moving.
Customizable Ring Speed & Overlap – Tailors wrap patterns for each job’s specs.
Manual & Automatic Modes – Adapts instantly to changing production needs.
Safety Sensors & Interlocks – Protects personnel and meets industry standards.
Heavy-Duty Design – Engineered for reliable handling of large, heavy coils.

Feature vs. ROI

Feature	Benefit/ROI
Adjustable Wrapping Tension	Secure, consistent packaging across all coil sizes and materials.
PLC & HMI Control	Faster changeovers and fewer operator errors.
High-Speed Operation	Greater throughput and reduced cycle times.
Adjustable Ring Speed & Overlap	Optimized wrap quality for every application.
Manual & Automatic Modes	Flexibility to match peak and off-peak demands.
Safety Features (Sensors & Interlocks)	Minimized downtime and compliance with safety regulations.
Heavy-Duty Design	Reliable performance with minimal maintenance.

Technical Specifications

Component	Specification
Coil ID	508 mm / 610 mm
Coil OD	700–1400 mm
Coil Width	200–500 mm
Coil Weight	80–1000 kg
Packing Material	PVC / LLDPE / PE / Paper / HDPE
Power Output	2.0 kW
Voltage	380 V, 50 Hz, 3-Phase
Ring Speed	20–60 r/min (adjustable)
Roller Speed	3–5 m/min
Overlap Rate	10 %–90 %
Air Supply	5–7 kgf/cm²

Ideal Applications & Industries

Steel & metal manufacturing plants
Copper, wire & steel coil packaging
Heavy-duty coil logistics & distribution
Automated production lines requiring fast coil handling

Why Wuxi BuHui

With 15 years of expertise, Wuxi BuHui delivers rugged, high-performance machines that streamline coil packaging, enhance safety, and reduce waste. Our responsive service and tailored solutions keep your line running at peak efficiency.

Request a Quote

Ready to upgrade your coil packaging? Contact Wuxi BuHui today for a customized proposal.

The FPS-400 steel coil wrapping machine is designed for efficient, secure, and high-speed packaging of steel coils. It enhances product protection during transportation and storage, reducing potential damage. With customizable settings, the FPS-400 adapts to various coil sizes, delivering consistent, reliable wraps ideal for industrial use.
