Steel coil wrapping machine FPS-300

Project Information

The FPW-300 Coil Packing Machine by FHOPE is designed to achieve high-efficiency packing with exceptional performance while adhering to stringent workshop safety standards. It offers dust-proof, scratch-resistant, and water-resistant protection for steel coils, making it a versatile solution for various coil sizes and weights. With manual or crane-assisted loading options, this machine caters to both light and heavy coils, ensuring seamless operations.

Key Features:

Loading: Manual / Crane
C-Hook: Vertical precise handling
Adjustables: Speed, tension, overlap
Centering: Ring aligned at coil center

Get Free Quote Now

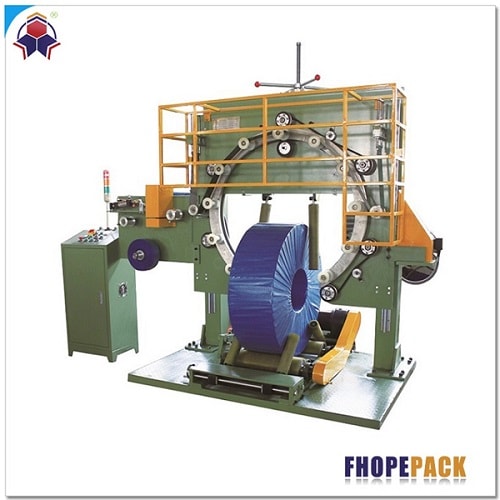

FPS-300 Steel Coil Wrapping Machine

Automate your coil packaging to slash labor, cut waste, and speed up throughput—so your team can focus on production, not packing.

Features & Benefits

Adjustable Wrapping Tension – Delivers uniform, secure wraps on every coil.
PLC & HMI Control – Streamlines setup with an intuitive touchscreen.
Manual & Auto Modes – Adapts instantly to workload peaks.
High-Speed Operation – Maximizes output and minimizes cycle times.
Safety Systems – Emergency stop, light indicators & roller guards protect your team.
Custom Coil Handling – Accommodates OD 600–1200 mm, 20–1000 kg coils.
Ring & Overlap Adjustment – Tailors wrap patterns for optimal performance.

Feature vs. ROI

Feature	Benefit/ROI
Adjustable Wrapping Tension	Consistent, damage-free packaging across all coil sizes.
PLC & HMI Control	Faster changeovers and fewer operator errors.
Manual & Auto Modes	Flexibility to match production demands.
High-Speed Operation	Higher throughput and reduced downtime.
Safety Systems	Lower accident risk and regulatory compliance.
Custom Coil Handling	Handles more SKUs without extra tooling.
Ring & Overlap Adjustment	Optimized material use and wrap quality.

Technical Specifications

Component	Specification
Coil ID	508–610 mm
Coil OD	600–1200 mm
Coil Width	100–300 mm
Coil Weight	20–1000 kg
Packing Material	PVC / LLDPE / PE / Paper / HDPE
Power Output	1.5 kW
Voltage	380 V, 50 Hz, 3-Phase
Air Supply	4–6 bar
Overlap Rate	10 %–90 %
Roller Speed	3–5 m/min

Ideal Applications & Industries

Steel & metal manufacturing plants
Copper, wire & steel coil packaging
Logistics & distribution centers
Automated production lines seeking higher throughput

Why Wuxi BuHui

Wuxi BuHui combines 15 years of industry expertise with rugged automation to deliver reliable, high-performance wrapping machines that enhance safety, reduce waste, and keep your line moving.

Request a Quote

Ready to transform your coil packaging? Contact Wuxi BuHui today for a personalized proposal.

The FPS-300 Steel Coil Wrapping Machine offers reliable and precise wrapping for steel coils, ensuring enhanced protection during storage and transport. Its user-friendly design allows for easy adjustments, meeting diverse packaging needs. This machine optimizes operational efficiency, making it a valuable asset in industrial packaging processes.
