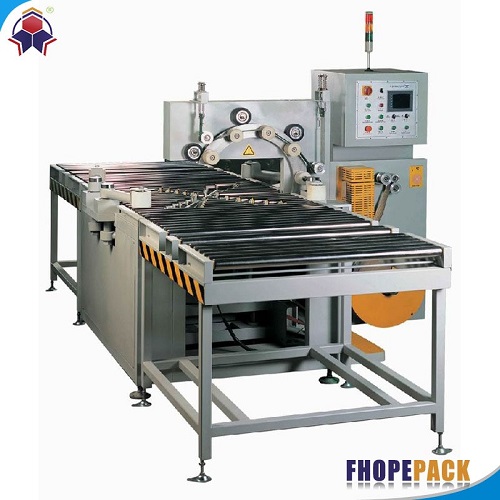

Horizontal steel coil wrapping machine FPCA-1000

Project Information

The Automatic Wrapping Station offers a seamless and efficient solution for coil wrapping, combining flexibility, safety, and advanced automation. It is designed to handle diverse packing needs while ensuring user convenience and optimal performance.

Key Features:

Manual & automatic modes for versatile operation
PLC with touchscreen for intuitive control
Quick OD/ID/width entry on-screen
Taper rollers ensure smooth coil rotation

Get Free Quote Now

Automate and secure your coil packaging with our Horizontal Steel Coil Packing Machine. It handles steel, copper, aluminum and other metal rolls with speed and consistency. Reduce labor costs and protect your coils in every shipment.

The Challenge

Labor-intensive manual wrapping slows production
Inconsistent tension and overlap risk coil damage
Managing varied coil sizes adds complexity
High costs and delays from inefficient workflows

Our Solution: Key Features & Benefits

VCI Film Wrapping: Shields coils from dust, moisture and rust.
Adjustable Tension & Speed: Tailor wrap to each coil for perfect coverage.
High-Speed Operation: Completes cycles in 40–70 sec to boost throughput.
Auto Loading & Unloading: Cuts labor by automating coil handling.
Safety Guards & Interlocks: Keeps operators protected at all times.
Height-Adjustable Conveyor: Aligns to any coil diameter for seamless wrapping.
Heavy-Duty Construction: Stainless steel rollers for years of reliable use.

Technical Specifications

Component	Specification
Package Item	Steel coil, slitting coil
Package Weight	100–2500 kg
Package Width	20–500 mm
Package OD	Ø800–1400 mm
Package ID	Ø508–610 mm
Roller Speed	5.2 m/min
Wrapping Speed	40–70 sec/pcs
Ring Rotating Speed	8–80 r/min
Power Voltage	380 VAC ±5%, 50 Hz, 3 Phase 4 Wire
Control Voltage	220 VAC 1 Ph / 24 VDC
Air Supply	5–8 kgf/m²
Packing Material	PE-coated crepe paper

Ideal Applications & Industries

Steel, aluminum, copper roll manufacturers
High-volume coil packaging and logistics
Customized coil protection for transport & storage

Why Choose Wuxi BuHui

Our machine combines flexibility, speed and precision. Customize tension, speed and overlap for every coil size. Integrate seamlessly into your line to cut costs and ramp up output. Trust in robust design for lasting performance.

Request a Quote

Ready to streamline your coil packaging? Contact Wuxi BuHui today for a tailored solution and competitive pricing.

The Horizontal Steel Coil Wrapping Machine FPCA-1000 is a high-performance packaging solution designed for secure and efficient wrapping of steel coils. Featuring advanced controls, durable materials, and customizable settings, it ensures optimal protection, reduces labor costs, and enhances packaging precision for heavy-duty industrial applications. Ideal for streamlining coil handling processes.
