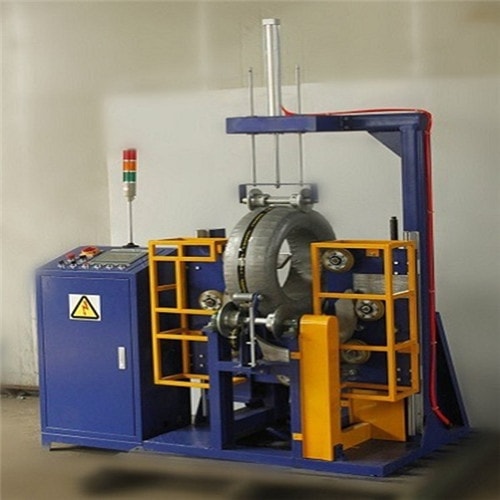

Tyre Packing Machine FPT-100

Project Information

The tyre wrapping machine is specifically designed to streamline the packaging of car and motorcycle tyres, ensuring efficient and reliable operations. Its advanced features and customizable settings make it ideal for handling diverse tyre sizes and shapes.

Key Features:

Simplified top-side loading for easy handling of small tyres.
Engineered specifically for car and motorcycle tyre packaging.
Supports stretch film, PE/LDPE, paper and branded tape.
Auto-reset rotating ring with soft start/stop and 10–90% overlap control in auto/semi-auto modes.

Get Free Quote Now

The Challenge: Inefficient & Unstable Tyre Packaging

High Labor & Low Throughput — Manual wrapping demands multiple operators and slows production.
Tyre Wobble & Misalignment — Lightweight or odd-shaped tyres shift, causing uneven tension and defects.
Frequent Size Adjustments — Varying IDs, ODs & widths lead to long setup times and errors.
Inconsistent Wrap Quality — Lack of precise speed/tension control wastes material and risks damage.
Operator Safety Risks — Manual loading around moving rings increases injury potential.
Poor Diagnostics — Non-integrated controls complicate troubleshooting and extend downtime.

The Solution: Horizontal Ring-Type Tyre Stretch Wrapper (Model: FPT-100)

Wuxi BuHui’s FPT-200 automates motorcycle & light car tyre packaging with top-side loading, pneumatic support and PLC/Touchscreen controls—delivering safe, consistent, high-speed wrapping.

Feature	Benefit / ROI
Horizontal Top-Side Loading Ring	Load/unload from above to reduce manual handling and speed operator workflow.
Pneumatic Support Brackets & Rollers	Eliminate wobble for uniform tension and flawless wrap consistency.
PLC + Touchscreen HMI	Centralized control and auto-reset ring minimize setup time and simplify diagnostics.
Inverter-Controlled Speeds	Fine-tune ring & roller speeds for tyre IDs 300–700 mm, ODs 510–800 mm, widths 40–250 mm.
Adjustable Overlap & Tension (10–80%)	Optimize film coverage and secure wrapping while cutting material waste.
Multi-Material Compatibility	Work with stretch film, PE/LDPE, paper, knit belt, PP or silver paper for varied protection & branding.
Automatic Material Fixing	Securely attaches film at start—no loose tails, no “tails” finish defects.
Soft Start/Stop & Ring Reset	Smooth acceleration/deceleration protects tyres and readies machine for next cycle.
Error Display & Alarms	Real-time fault feedback slashes troubleshooting time and downtime.
Safety Guardrails & Covers	Protect operators from moving parts and rotating ring hazards.
Quick Mechanical Adjustments	Switch between tyre sizes fast—minimize changeover delays.
Logo Tape Integration	Add branding or ID tape in one seamless operation.
High Throughput (18–30 sec/tyre)	Automate cycles to hit production targets and slash labor costs.

Technical Specifications

Specification	Details
Model	FPT-100
Voltage	AC 380 V, 50 Hz (customizable)
Power	1.5 kW
Tyre ID	300–700 mm
Tyre OD	510–800 mm
Tyre Width	40–250 mm
Wrapping Time	18–30 sec/tyre
Ring Speed	Up to 120 r/min (inverter)
Overlap Rate	10–80 %
Materials	Stretch film, PE, LDPE, paper, knit belt, PP, silver paper
Control	PLC with touchscreen HMI, auto-reset
Safety	Guardrails, covers, emergency stop
Error Handling	Touchscreen alerts & alarms
Customization	Adaptable for special sizes, materials or logo tape

Ideal For

Motorcycle & Light Vehicle Tyre Manufacturers
Tyre Distributors & Logistics Providers
Aftermarket & Retreading Workshops
OEM Spare Parts Packaging Lines
Operations Prioritizing Safety & Efficiency

Request a Quote

Elevate your tyre packaging with Wuxi BuHui’s FPT-100. Contact us now to customize for your tyre sizes, boost throughput and ensure safe, professional wrapping quality.

The FPT-100 Tyre Packing Machine provides efficient, reliable tire packaging for safe transport and storage. With a compact design and easy operation, it enhances packaging speed and minimizes material waste. Built for durability, the FPT-100 is ideal for industrial settings requiring high-performance packaging solutions.
