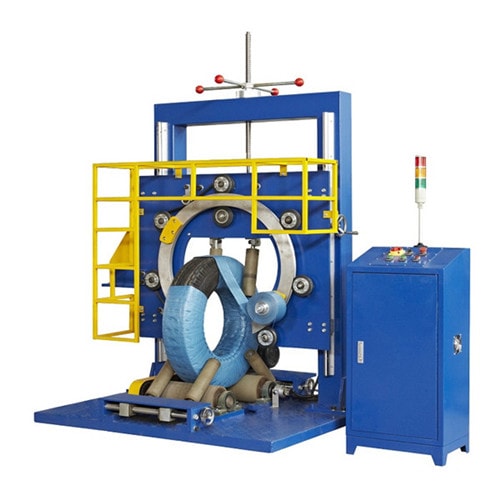

Tyre Packing Machine FPT-200

Project Information

This tyre wrapping machine offers a robust and reliable solution for packaging tyres with precision and efficiency. Designed with a durable frame and advanced features, it caters to a wide range of tyre sizes and packing requirements while ensuring high-quality results.

Key Features:

Strong frame for heavy loads
Rotating ring ensures uniform, complete wrapping
Opening ring enables eye-cross wrap for extra security
Full-surface packing shields from dust, moisture & damage, enhancing presentation

Get Free Quote Now

Manual tyre wrapping ties up multiple operators, risks uneven coverage, and wastes time and film. The Horizontal Ring-Type Tyre Stretch Wrapper (Model: FPT-200) from Wuxi BuHui automates packaging for motorcycle and light-vehicle tyres. With PLC/Touchscreen control, inverter-adjustable speeds and sturdy support, it locks tyre IDs (500–900 mm), ODs (800–1200 mm) and widths (80–300 mm) firmly in place and delivers uniform overlap (20–80%) in just 25–40 s per tyre. By cutting labor, boosting safety and ensuring a polished finish, it helps you streamline operations and uphold premium packaging standards.

The Challenge

High Labor & Low Output Manual or semi-auto methods demand extra hands and slow throughput.
Tyre Wobble Light or uneven tyres shift during wrap, causing tension faults and defects.
Lengthy Changeovers Switching tyre sizes eats into production time without flexible adjustment.
Uneven Coverage Inconsistent speed, tension or overlap leads to gaps or overuse of film.
Safety Risks Loading around a spinning ring without guards or soft-start exposes operators.
Complex Maintenance Disparate controls and unclear alarms prolong downtime.
Multi-Material Needs Packaging must adapt to film, paper, belt or PP for protection and branding.

The Solution: FPT-200 Features & Benefits

Wuxi BuHui’s FPT-200 combines a top-side loading ring, PLC HMI, pneumatic/mechanical supports and multi-material compatibility to deliver fast, stable, and repeatable wrapping.

Feature	Benefit / ROI
Top-Side Loading Ring	Load/unload from above to cut handling time and improve ergonomics.
Pneumatic & Adjustable Rollers	Lock tyres solidly to prevent wobble, ensuring even tension and overlap.
PLC Touchscreen & Auto-Reset	Centralize controls, guide quick setups, and auto-position the ring.
Inverter-Controlled Speeds	Tune ring and roller speeds to match tyre dimensions for optimal wrap.
20–80% Overlap & Tension Control	Guarantee right coverage while cutting film waste.
Multi-Material Compatibility	Handle stretch film, PE/LDPE, paper, knit belt, PP or silver paper.
Auto Material Fixing & Cutting	Secure film at start, cut at end—eliminate loose ends and speed cycles.
Soft Start/Stop & Ring Reset	Smooth acceleration and deceleration protect tyres and machine.
Error Display & Alarms	Instant fault alerts on screen enable rapid troubleshooting.
Guardrails & Covers	Shield operators from moving parts for safer operation.
Quick Size Adjustments	Switch tyre dimensions swiftly to minimize downtime.
Optional Logo Tape	Integrate branding tape application in one seamless cycle.
High Throughput (25–40 s/tyre)	Automate at speed to hit targets and reduce labor costs.

Technical Specifications

Specification	Details
Model	FPT-200
Power	AC 380 V, 50 Hz; 2.0 kW
Tyre ID	500–900 mm
Tyre OD	800–1200 mm
Width	80–300 mm
Weight	10–100 kg
Wrap Time	25–40 s/tyre
Ring Speed	30–110 r/min (inverter)
Overlap	20–80%
Materials	Stretch film, PE/LDPE, paper, knit belt, PP, silver paper
Control	PLC with touchscreen HMI; auto ring return
Safety	Guardrails, covers, E-stop
Error Handling	On-screen alerts & alarms
Customization	Size, material, logo tape options

Ideal Applications & Industries

Motorcycle Tyre Makers: Stable, high-speed wrapping for light tyres.
Light-Vehicle Tyre Producers: Efficient packaging across varied sizes.
Tyre Distributors & Logistics: Fast wrap cycles to speed shipping.
Aftermarket Workshops: Professional, consistent packaging of re-treaded tyres.
OEM Spare Parts Lines: Seamless integration for parts packaging.
Safety-Focused Facilities: Guardrails and soft-start reduce risk.

Request a Quote

Ready to upgrade to automated, high-quality tyre wrapping? Contact Wuxi BuHui today to discuss your tyre sizes, material needs and production targets.

The Tyre Packing Machine FPT-200 is a high-efficiency solution designed to streamline tire packaging processes. It offers secure and precise wrapping, protecting tires from dust, moisture, and damage during storage or transit. Ideal for large-scale operations, the FPT-200 ensures durable, cost-effective, and professional packaging.
