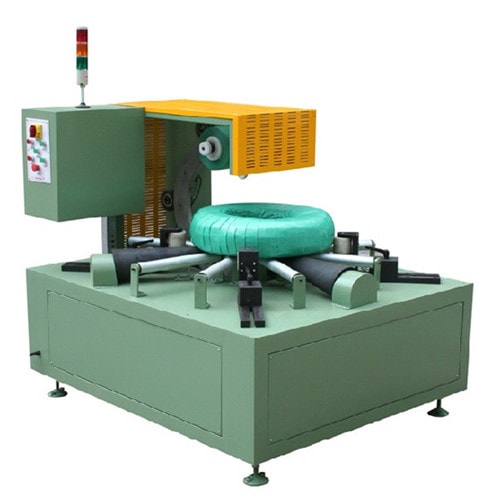

Cable coil wrapping machine FPCA-300

Project Information

The FPCA-300 is a versatile and efficient cable coil wrapping machine designed specifically for larger cable coils. With the ability to perform two-layer wrapping using stretch film and paper or woven materials, it provides superior protection and a professional finish. Its compact version integrates the control board into the working table, making it ideal for space-saving applications.

Advantages

High Efficiency: Streamlines the wrapping process, saving labor and material costs.
Professional Packaging: Delivers neat, secure, and visually appealing wraps.
Customizable Options: Adaptable to meet specific mechanical and packaging needs.

Get Free Quote Now

Wrapping large cable coils by hand or with limited automation demands multiple operators. It risks uneven protection, wastes material, and slows production.

The Challenge

High Labor & Inconsistent Results: Manual or semi-automatic wrapping yields uneven tension and misaligned layers, compromising protection and appearance.
Protection vs. Appearance Trade-off: Single-layer film alone can’t cushion coils or block moisture well, yet heavier packaging slows operations.
Material Waste & Cost Overruns: Imprecise cutting or tension control drives excess film and paper usage.
Space Constraints: Bulky machines won’t fit every workshop—compact controls are essential.
Variable Coil Sizes: Coils ranging ID 250–510 mm, OD 400–900 mm, width 60–300 mm, weight 20–200 kg require fast, reliable changeovers.
Reliability & Maintenance: Downtime spikes without automatic wrap detection, material-end alerts, and clear fault indicators.
Customization & Integration: Each line may need tailored mechanics, dual-layer goals, and seamless MES or conveyor integration.
After-Sales Support Expectations: Remote troubleshooting and warranty coverage are critical to minimize downtime.

The Solution: FPCA-300 Cable Coil Wrapping Machine

Feature	Benefit & ROI
Two-Layer Wrapping (Film + Paper/Woven)	Delivers superior abrasion, dust, and moisture protection while presenting a premium finish—reducing damage claims and boosting brand image.
PLC/HMI with Programmable Profiles	Save profiles for different coil sizes. Achieve swift changeovers and consistent results—even non-specialists operate with ease.
Inverter-Adjustable Ring & Roller Speeds	Fine-tune wrap speed and overlap (10%–90%). Complete each coil in 20–38 s to maximize throughput.
Compact Layout Option	Integrate the control panel beneath the table to fit tight floor spaces without losing functionality.
Automated Cutting & Quick Reload	Achieve clean, anti-fold cuts and swap rolls fast—slashing waste and downtime.
Supportive Rollers & Centering Sensors	Stabilize coils and monitor ring position for perfect wraps every time.
Soft Start/Stop & Overcurrent Protection	Protect motor and controls with smooth acceleration, safeguarding your investment.
Wide Material Compatibility	Use LLDPE/PVC/PE film, paper, or woven fabrics to balance protection and cost.
Easy Coil Loading/Unloading	Place coils manually in seconds—no lift gates or special tools required.
Sensor-Based Monitoring & Alarms	Detect errors instantly and alert operators—keep lines running smoothly.
Durable Ring & Roller Design	Heavy-duty construction and adjustable friction extend component life.
Customizable Mechanics	Tailor machine dimensions, wrapping heads, and control logic to your facility.
Warranty & Remote Support	Enjoy a 1-year warranty plus free remote troubleshooting to minimize downtime.

Technical Specifications

Parameter	Specification / Notes
Model	FPCA-300 Cable Coil Wrapping Machine
Power	AC 380 V, 50/60 Hz, 3-phase (customizable)
Consumption	2.4 kW
Coil ID	250–510 mm
Coil OD	400–900 mm
Width	60–300 mm
Weight	20–200 kg
Wrap Time	20–38 s per coil
Ring Speed	10–90 RPM (inverter)
Overlap	10%–90%
Control	PLC with HMI, programmable profiles
Materials	LLDPE/PVC/PE film, paper, woven
Cutting	Automated with anti-fold brake
Sensors	Roller guides, encoder feedback
Safety	Soft start/stop, overcurrent, shields, alarms
Layout	Standard or compact under-table control
Maintenance	Easy-access components
Customization	Dimensions, heads, integration options
Support	1-year warranty, remote troubleshooting

Ideal Applications & Industries

Cable & Wire Manufacturers: Automate dual-layer wrapping to protect coils and enhance brand appeal.
Telecom & Electrical Suppliers: Deliver premium, damage-resistant packaging that raises customer confidence.
Contract Packers: Expand services with flexible film+paper/woven wrapping for diverse coil sizes.
OEMs & Integrators: Seamlessly embed FPCA-300 into extrusion or conveying lines.
Logistics & Warehousing: Standardize coil packaging for safer transport and storage.
Maintenance Teams: Leverage sensor-driven alerts and remote support to maximize uptime.

Why Choose Us

FPCA-300 combines two-layer protection with programmable controls and space-saving design. Automated tensioning, overlap and cutting eliminate waste and reduce labor. Durable rollers, sensors, soft start/stop and alarms ensure reliable, high-speed operation. Backed by a 1-year warranty and remote troubleshooting, it boosts throughput and cuts costs.

Request Your Customized FPCA-300 Quote

Ready to streamline large cable coil packaging? Share your coil dimensions and production needs. We’ll configure a tailored FPCA-300 solution to maximize efficiency, minimize waste, and deliver consistent, high-quality wraps.

The FPCA-300 cable coil wrapping machine offers high-speed and precision wrapping for various cable sizes. Its innovative design ensures optimal tension and coverage, protecting cables during storage and transportation. Easy to operate and maintain, the FPCA-300 is an ideal solution for manufacturers looking to enhance their packaging efficiency.
