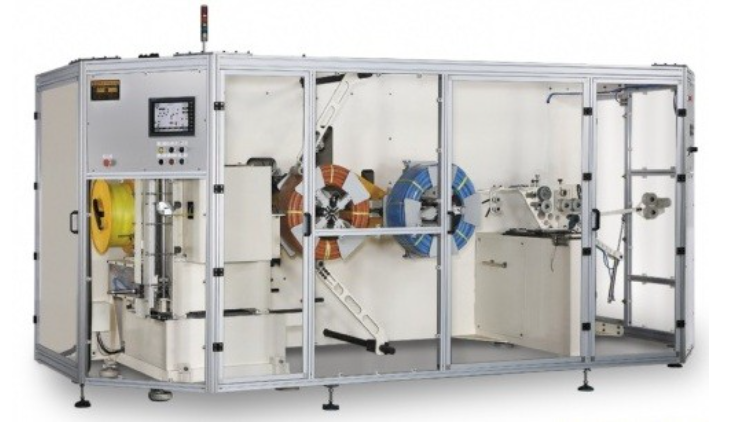

Automatic Pipe Coiling and Strapping Machine

Project Information

FHOPEPACK combines technological innovation with customer-focused service to deliver optimal packaging solutions for the tube industry.

Key Features:

All-in-one coiling & strapping
CE-certified safety & consistency
Full sales, service & engineering support

Get Free Quote Now

Streamline pipe coiling and strapping with Wuxi BuHui’s PLC-driven Automatic Pipe Coiling and Strapping Machine. This turnkey solution unifies precise winding, length measurement, tension control, and multi-point strapping—delivering uniform coils, rapid changeovers, and enhanced operator safety.

The Challenge: Tackling Manual, Labor-Intensive Coiling and Strapping

High Labor Demand: Multiple operators and repetitive tasks drive up costs and fatigue.
Variable Coil Quality: Inconsistent tension and winding create irregular shapes and damage risk.
Slow Cycle Times: Separate winding and strapping steps bottleneck throughput.
Complex Changeovers: Manual adjustments for different pipe sizes add setup time and errors.
Safety Hazards: Handling heavy coils exposes operators to injury.
Unreliable Packaging: Loose or uneven straps can allow coils to unwind or deform.

The Solution: Core Features & ROI

Our integrated system automates coiling, measuring, tensioning, transferring, and strapping under PLC control, complete with real-time HMI feedback and safety interlocks.

Feature	Benefit / ROI
PLC-Controlled with Stored Recipes	Recall settings instantly for any pipe diameter or length, slashing setup time and errors.
Precision Length Measurement	Centimeter-accurate counts ensure each coil matches spec, cutting waste and rework.
Servo-Driven Coiling Head	Uniform winding and automatic head motion eliminate manual alignment tasks.
Adjustable Tension Control	Maintains ideal strap tension to protect pipe integrity and secure coil shape.
Automated Cut & Transfer	Self-cutting and computer-controlled transfer eradicate manual handling and speed workflow.
Multi-Point Strapping Module	Delivers consistent binding at multiple points for safe transport.
Real-Time HMI & Alarms	Instant status updates and fault alerts minimize downtime.
Safety Systems	Guardrails, limit switches, soft start/stop, and anti-collision protect operators.
High-Speed Operation	Simultaneous coiling and strapping boost throughput for high-volume runs.
Modular Construction	Robust steel frame and premium components ensure uptime and simplify maintenance.

Technical Specifications

Specification	Details
Pipe Size Range	ID: Φ350–550 mm; OD: Φ500–800 mm; Width: 150–300 mm
Coil Weight	5–35 kg
Speed	1–60 m/min
Strapping Positions	2–4 locations, PP belt 12–13 mm wide
Power	380 V, 60 Hz, 3-phase, ~4.5 kW
Control	PLC with HMI touchscreen, stores multiple programs
Unloading	Program-driven crane or guide-rail system
Safety Devices	Limit switches, anti-collision sensors, guardrails
Frame	Welded steel, modular design

Ideal Applications & Industries

HDPE & Corrugated Pipe Producers: Fast changeovers and secure packaging right off the extrusion line.
Hose & Tubing Manufacturers: High-speed winding and integrated strapping streamline packaging.
Industrial Packaging Facilities: Versatile handling of varied coil diameters and materials.
High-Mix, High-Volume Operations: Maintain consistent quality across multiple product runs.
Safety-Critical Environments: Automated transfer and unloading reduce manual risk.

Wuxi BuHui’s Advantage

Wuxi BuHui’s integrated coiling and strapping system unleashes high-speed automation with minimal manual input. Stored recipes, precision measurement, and multi-point strapping guarantee uniform coils every time. Modular construction and top-tier components deliver reliable performance and easy maintenance—empowering manufacturers to cut labor costs, reduce waste, and maximize throughput.

Request a Quote

Ready to transform your pipe packaging line? Contact Wuxi BuHui today to discuss customization options and get your tailored quote.

The hose coiling and strapping machine streamlines the process of coiling and packaging hoses with precision and speed. Designed for durability and efficiency, it ensures consistent coiling and secure strapping, reducing manual labor and enhancing productivity. Perfect for industrial applications, it delivers neatly packaged hoses ready for transport or storage.
