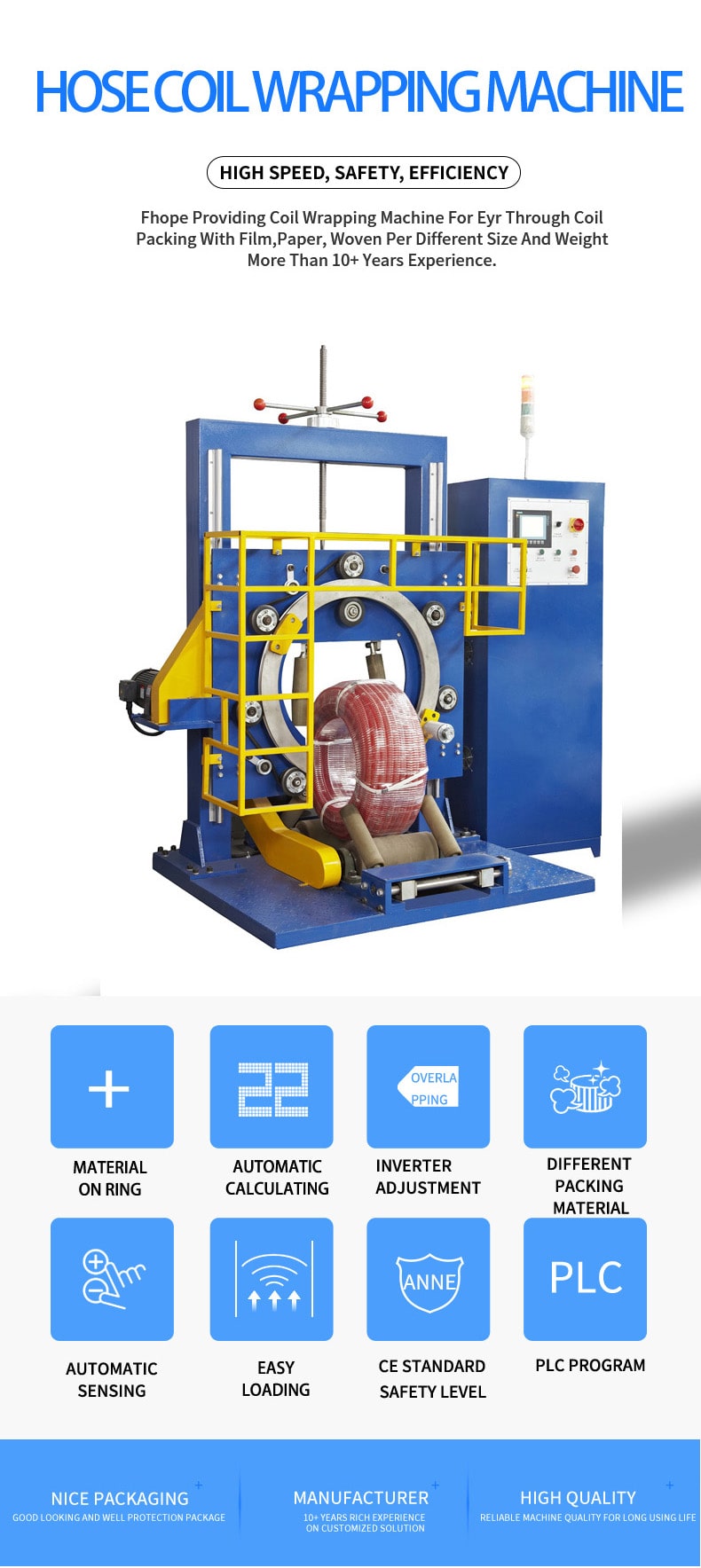

Hose wrapping machine FPH-300

Project Information

The FPH Series, designed by Fhope, offers advanced winding and packaging capabilities for industries like rubber hoses and metallurgy. It efficiently handles circular packaging needs for products such as plastic pipes, rubber hoses, tires, cables, and metal strips while prioritizing safety, ease of operation, and product integrity.

Key Features:

Versatile: Any material or item
User-Friendly: Manual/auto, easy load/unload, flexible adjustments
Efficient: Rapid cycles, adjustable speed & overlap
Safe: Barriers, soft start/stop, automatic fault alerts

Get Free Quote Now

Eliminate manual wrap woes and protect small hose coils with Wuxi BuHui’s FPH-300N. High-speed vertical-eye wrapping (120 RPM) finishes each coil in 20–35 seconds. Adjustable overlap and tension, inverter-driven speed, and multi-material support ensure neat, waste-minimized wraps. Safety guardrails, smooth braking, and reset-to-origin simplify operation and safeguard coils and operators.

The Challenge

High Labor: Manual wrapping ties up multiple operators and raises costs.
Inconsistent Wraps: Variable tension and overlap cause waste or coil damage.
Slow Changeovers: Adjusting for different coil sizes disrupts flow.
Throughput Pressure: Slow machines bottleneck end-of-line targets.
Safety & Surface Care: Abrupt starts/stops risk operator injury and coil scratches.
Material Waste: Excess film drives up packaging expenses.
Line Integration: Need flexible modes and speed control to fit diverse lines.

Solution: FPH-300N Features & Benefits

Feature	Benefit & ROI
120 RPM Vertical-Eye Wrapping	Wraps each coil in 20–35 seconds, boosting throughput and cutting labor by up to four staff.
Adjustable Overlap (10%–90%)	Tailors wrap density to protect coils and minimize film use.
Tension Control Device	Keeps wraps snug and uniform, preventing deformation.
Inverter-Driven Speed	Matches cycle times to production needs, avoiding bottlenecks.
Reset-to-Origin	Enables quick changeovers for varying coil sizes, reducing downtime.
Manual/Auto Modes	Offers operator control for specials and full automation for volume runs.
Safety Guardrails & Smooth Braking	Protects coils and operators for safe, uninterrupted cycles.
Multi-Material Support	Accommodates stretch film, paper or HDPE to suit protection and cost goals.
Easy Load/Unload	Reduces ergonomic strain and speeds up packaging cycles.
Custom Configurations	Adapts dimensions and controls to your facility requirements.

Technical Specifications

Parameter	Specification
Model	FPH-300N
Coil ID	Φ300–Φ700 mm
Coil OD	Φ500–Φ1000 mm
Width	100–300 mm
Weight	10–100 kg
Wrap Time	23–35 sec/package
Avg. Speed	20–35 sec/coil
Ring Speed	120 RPM
Power	380 V, 60 Hz, 3-phase; 1.9 kW
Materials	Film: OD 100–180 mm, ID 50 mm, W 90–100 mm; optional paper/HDPE wraps
Controls	Manual/auto, inverter adjustment, reset-to-origin
Safety	Guardrails, soft start/stop, special brake
Customization	Per client specs

Ideal Applications & Industries

Corrugated Hose OEMs: Ensure consistent, protective wraps for hydraulic and pneumatic coils.
Plastic Tube Producers: Package coiled tubing before assembly or shipment.
3PL Packaging Services: Serve varied small/light coil sizes with one machine.
Logistics & Warehousing: Stabilize wrapped hose loads on pallets, reducing damage claims.
Maintenance & After-Sales: Speed up repackaging tasks for replacement coils.
Equipment Integrators: Embed turnkey wrapping solutions into end-of-line systems.

Why Wuxi BuHui

Wuxi BuHui’s FPH-300N combines 120 RPM speed, precise overlap and tension control, and quick changeovers to boost throughput and cut labor. Safety features and smooth braking protect operators and coils. Multi-material compatibility and custom layouts adapt to any facility. Trust Wuxi BuHui for efficient, reliable hose coil wrapping that lowers costs and elevates packaging performance.

Request a Quote

Share your coil dimensions and production goals with Wuxi BuHui. We’ll configure the FPH-300N for optimal speed, protection, and cost savings.

The FPH-300 Hose Wrapping Machine offers reliable, high-speed wrapping for hoses of different sizes, ensuring enhanced protection and stability during handling and shipment. With user-friendly controls and robust construction, this machine streamlines packaging processes, minimizes manual effort, and boosts efficiency, making it a valuable addition to any industrial packaging line.
